Thursday, December 31, 2009

Photoshop - Recover an overexposed image



Blog reader Mark Mayer approached me recently to ask what he could do with some images which are overexposed. He asked “I am a point and shoot camera user and like many of my friends we often take pictures that have too much sun. Although I know taking a picture facing towards the sun isn’t ideal, it’s hard to always line up the right shot”.

Mark is right. Not all of us have great digital SLRs with us all the time and we’re not always able to move into the right place to take a shot. So, if you’ve got a less than well exposed image that you like, how will you fix it?

Here is a simple fix. Depending on how much time you’re willing to spend on the image you can stop after step 2 or go on. Even if you go all the way through the fix it will take you less than five minutes. So, in my book, that’s worth the effort.

Step 1


The simplest place to start salvaging an image like this is to make a duplicate of the background layer by right clicking the layer and choose Duplicate Layer. Set the layer blend mode to Multiply.

Step 2


If the fix is too much you can adjust the opacity of this top layer downwards to get the result you like.

However, you can get even better results with a mask. Read on…

Step 3


While the duplicate a layer and set the blend mode to Multiply method is a good way to salvage an overexposed image it doesn't work perfectly on this image because the overexposure is more obvious in the areas where the sun’s rays are. If you're prepared to do a little more work you can adjust the fix to suit the image. To do this, adjust the Opacity of the top layer back to 100%.

Set the foreground color to Black and hold the Alt key as you click on the Add Layer Mask icon at the foot of the Layers palette. This adds a black filled layer mask to the layer essentially removing the fix entirely.

Switch and make white your foreground color, select a very large very soft edge brush and click on the Mask in the Layers palette and begin to brush on the fix. You’ll want the fix to be less apparent around the edges of the image and more in the area where the sunbeam is.

Step 4


You can duplicate this layer again to make a slightly more intense fix but again limiting it to where the sun’s rays are most apparent. You can also adjust the opacity of the top layer downwards if you’re getting too much of a fix.

Step 5


Once you’ve done this, you can create a flattened version of the image by clicking on the topmost layer of the image and press Ctrl + Alt + Shift + E to create a new layer containing the image data. Duplicate this layer so that you have two identical layers at the top of the document.

Select the topmost layer and choose Filter > Other > High Pass. We will use the High Pass Filter to sharpen the image because the image has a lot of color noise in it. Using this tool we can limit the sharpening to just the edges in the image and avoid sharpening the noisy areas.

Watch the image in the Preview dialog and adjust the Radius down until you see a greyscale image and so you cannot see any color. A Radius value of around 1.5 is sufficient for this image. Click Ok.

Step 6


Set the layer blend mode of this top layer to Soft Light to complete the sharpening.

Next time you’re taking a photo like this in strong sunlight, consider removing your sunglasses and place them over the camera lens. This lets you use the polarizing sunglasses as a filter over the camera lens and should cut the glare. You can do this with a point and shoot camera and with a camera phone. If you’re getting results like these with a digital SLR you should purchase a polarizing filter to use as you will get much better results with it.

Thank you to Mark Mayer for the images and this question! If you have questions, send me your question and a problem image with permission to use it as an example on my blog and I’ll see what I can do.

Note: Original photos are © Mark Mayer.

Labels: , , , , ,

Wednesday, December 30, 2009

CD Inspiration: Nine Inch Nails

In a previous post I drew inspiration from Police's Synchronicity album cover to create a Photoshop project. This week the cover for the Nine Inch Nails album, Downward Spiral, caught my eye. If you want to see the original album cover, check it out here: http://www.musicdirect.com/products/images.php?i=-1&p=38059&h=75291 - I think it's a great way to showcase a grungy image such as this graffiti. Here’s how to create the effect:

Step 1
Open the image and crop it to a square shape.

Add a new layer by clicking the Add New Layer icon at the foot of the layers palette and use the rectangular marquee to drag over the bottom third of the image.

Fill this selection with white by setting the foreground color to white and press Alt + Backspace or Option + Delete on the Mac. Drag the Opacity slider down to around 60 percent so that you can see some of the image through it.

Step 2
On a new layer, type one line of text in a sans serif font. I used Candara Regular and set the text color to a dark color sampled from the image itself.

Select the text, display the Character palette and drag on the Tracking slider to separate the letters so that they are spread out.

Step 3
You’ll need two lines of text so you can position them to get the effect in the bottom right corner of the album cover. The second line of text is in lower case but the same font and it does not have so much tracking applied to it. Position the two lines of text in place.

Step 4
To create the cutout you need to make a hollow rectangular selection which sounds easier to do than it is. Start by selecting the Rectangular Marquee tool and select around the first piece of text on the outer edge of what will become your final selection. Save this selection by choosing Select > Save Selection, type a name for the selection and click Ok. Choose Select > Modify > Contract and contract the selection by ten (or more) pixels depending on the size of your image.

Invert the selection by choosing Select > Inverse.

Choose Select > Load Selection, click the Intersect with Selection option, choose the channel that you just saved and click Ok.

This will select a small hollow rectangular shape on the image.

Step 5
Click on the white layer in the layer palette to select it. Hold the Alt key (Option on the Mac) as you click on the Add Layer Mask icon at the foot of the layer palette to add a layer mask to the white layer. This shows a portion of the image through the white overlay.

Step 6
Add a new layer and make sure it is selected. Select the Brush tool and select an interesting shaped brush such as the Heavy Smear Wax Crayon brush in the dry media brushes collection. With black paint, paint over the top left edge of the white overlay.

Step 7
Add a new layer and select the Pen tool. Make sure that Paths is selected on the toolbar. Draw a few lines through your paintwork. Start by clicking and dragging the first point and then click and drag multiple times to create an organic curved line. Press Enter to finish the first line. Click on the Work Path in the Paths palette to select it and then draw a second line. Continue to draw all the lines you need.

Step 8
View the Paths palette and make sure that you have a small hard-edged brush selected such as a 5-pixel brush and black paint. Click the Work Path to select it and click the Stroke Path with Brush icon at the foot of the Paths palette.

Because you are painting with black, this will give you some black lines through the painted shape.

Delete the path.

Step 9

Add a small drop shadow to this layer by clicking the Add a Layer Style icon at the foot of the layer palette and choose Drop Shadow. You can choose a lighter color for the shadow but make sure to change the blend mode to Screen if you do so.

Right-click the Drop Shadow layer style and choose Create layer. This converts the shadow into a layer of its own that you can then select the shadow layer and remove some of the drop shadow by erasing over it with a ragged shaped and partially transparent brush.

Step 10
To create a heavy black box, add a new layer and drag to create the outer edge of the box using the Rectangular Marquee tool. Fill the selection with black.

Choose Select > Modify > Contract and contract the shape by the number of pixels that you need to create the inner edge of the black border. Press the Delete key to remove the black fill from this selection.

Step 11
Use the Text tool to add text inside the box. For this text I used Gil Sans MT Condensed as it is a good thick black font which can show a lot of text in a small space.

Because the text was placed on a very dark element in the background I’ve used a drop shadow set to a lighter color sampled from the image with its blend mode set to Screen. By setting the Distance to zero, and using comparatively large values for Size and Spread, the text can be more easily read.

Step 12
Another line of text just below this box and stretched the full width of the box finishes the image. It has the same layer style applied to it as the previous layer so that it can be easily read. Instead of recreating the drop shadow layer style, right click the first text layer and choose Copy Layer Style and then right click the target layer and choose Paste Layer Style.

Reproducing interesting graphics that you see whether on album covers, in advertisements and other places is a great way to develop and polish your Photoshop skills.

Labels: , ,

Sunday, December 27, 2009

Photoshop: Coloured pencil sketch

One popular technique that you can apply to your photos is to turn a regular photo into a pencil sketch. Here's a technique for doing this that uses a process for extracting lines from an image that I've posted about before. To see the process explained in detail visit this post: Extracting lines from a photo
http://www.projectwoman.com/2009/02/photoshop-extracting-lines-from-photo.html
Open the image and duplicate the background layer. Remove the saturation from this new duplicate layer by selecting it and choose Image > Adjustments > Hue/Saturation. Drag the Saturation slider to -100 and click Ok.

At this stage if the image appears to be lacking some contrast then adjust it by choosing Image >Adjustments > Levels. Adjust the levels in the image by dragging the sliders under either end of the chart inwards to darken the darks and lighten the lights and adjust the midtone slider to get some good contrast in the image. Click Ok to accept this.

Right click the top layer, choose Duplicate Layer and click Ok. You have now have two identical layers at the top of the layer stack. Select the top most layer and press Ctrl + I to invert this layer so it looks like a photo negative. Set the blend mode of this layer to Color Dodge. This makes the image white or mostly white. With this top layer still selected choose Filter > Blur > Gaussian Blur and adjust the blur radius until the edges of the image appear. Select a value that gives you good edges (ignore that they are too light and focus on the lines and shading), and click Ok.

Click the topmost layer and press Ctrl + Alt + Shift + E to create a flattened version of the image on a new layer but without losing the existing layers in the process. Set the blend mode of this layer to Multiply. Duplicate this top layer two or three times until the image gets darker. When you achieve the result you want, select the topmost layer and press Ctrl + Alt + Shift + E to create a new merged layer, while keeping the layers below too.

You're now ready to convert this image into a sketch. Step 1

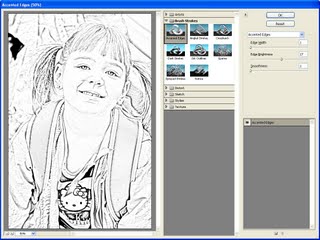

Choose Filter > Filter Gallery > Accented Edges. Set Smoothness to 1 and adjust Edge Width to a value of 1 or 2. Set the Edge Brightness to a value that ensures detail and texture in the image but without too much distracting grey shading. Click Ok.Step 2

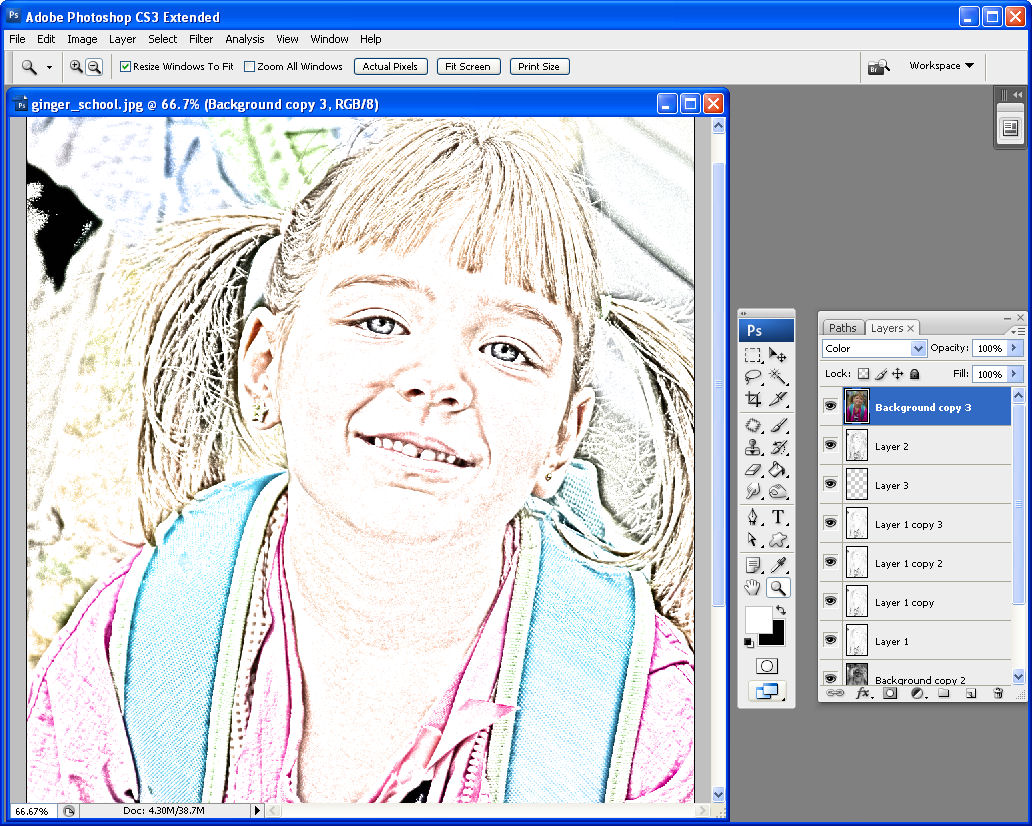

Right click on the background layer and choose Duplicate Layer and click Ok. Move this duplicate background layer to the top of the layer palette and set the blend mode to Color. Add a new blank layer below the top two layers and fill it with white. Step 3

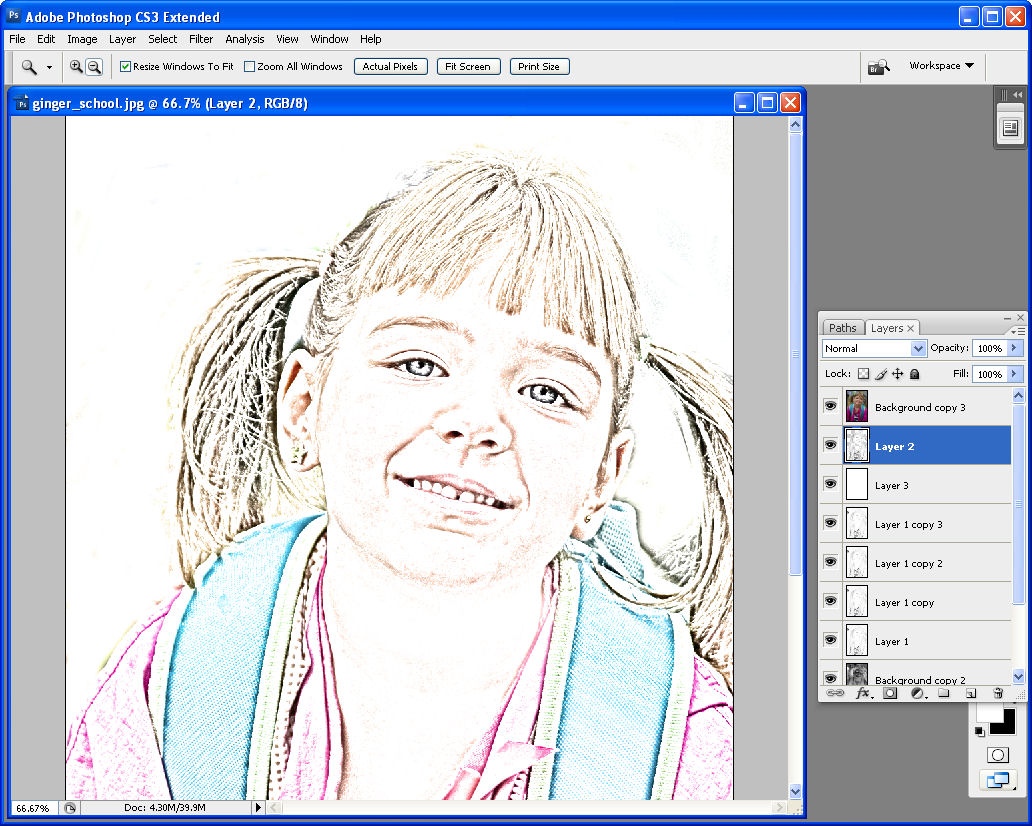

Select the Eraser and select a soft brush. Select the second layer down from the top of the layer stack and erase any areas of the image you don't want to appear. This technique can be used to remove excessive shading and any unwanted background.

Labels:

Sharpening in Lightroom


When you’ve finished doing your basic color correction to an image in Lightroom you’re ready to look into sharpening the image. In a previous posts I explained the basics of sharpening and how to use the High Pass Filter in Photoshop to sharpen an image. Today I’ll show you how to sharpen in Lightroom.

You’ll find the sharpening tools in the Detail area in the Lightroom Develop module. It’s best to work on the image at a 1:1 ratio as this ensures that the sliders that you’ll use can be seen at work on the image. If you aren't in at least 1:1 view you will have to work from the small preview window. To select 1:1 zoom, click the indicator in the top left of the screen.


You have four sliders in the sharpening area. Amount controls how much sharpening is applied to the image. This can be considered to be your fine-tuning tool.

The Radius is one of the key settings to use. The Radius value can be moved between 0.5 and 3. Typically, a good Radius to start sharpening with is around 0.5 to 1 and then adjust it from there if the sharpening is insufficient. Images with large areas that are not very detailed such as portraits, may need larger values for the radius where images with a lot of fine detail may respond better to smaller values.


The Detail slider reduces the haloing in the image. The higher the value you use for Detail, the more halos you will see around the edges in the image. The lower the Detail value the less halo effect and the smoother the result.

You can see how the slider works when you are viewing a 1:1 preview size. Hold the Alt or Option key as you drag on a slider. The higher the Detail value the more lines you will see in the grayscale preview indicting the sharpening effect on the image.

The Masking slider works to mask out areas of smooth color. What it does is to enhance the edges and remove the sharpening effect from areas in the image that have smoother color transitions which you probably don't want to be sharpened.

Again, you can hold the Alt key as you work with the slider. The slider values range from 0 – 100. At zero, everything in the image is sharpened and at 100 only the edges are sharpened. In the preview, the white areas are those being sharpened and those that are black will not be sharpened.


If you aren't using 1:1 view you will need the preview window to be visible so you can see the results when using the Masking and Detail preview options. To view this, click the arrow in the top right corner of the Detail area.


When you’re starting out learning how to sharpen it can be difficult to see just what effect the sharpening is having on the image. If you press the backslash key you’ll return to the unedited image rather than to the image as it was before you started sharpening it.

This is a time where virtual copies can be useful. Wind back the history to just before you started sharpening the image. Right click the image and choose Create Virtual Copy. This creates a virtual copy of the image whose starting history is the current view of the image after your initial fixes have been made.


Now when you sharpen the image and use the Before and After settings you can see the change that the sharpening is applying to the image because that’s the only change to the virtual copy that you are editing.


Typically, if you are displaying images on the web you want to sharpen the image so that what you’re seeing on the screen is what you want to see when the image is on the web. On the other hand, for printing you generally apply heavier sharpening to the image as some of this will be lost in the printing process.

Labels: , , ,

Saturday, December 26, 2009

8 secrets of the zoom tool


Continuing with my 'tool' secrets posts, here are 8 secrets of the Photoshop Zoom Tool.

Quick toolbar shortcuts
The Zoom tool can be selected by pressing the letter Z – it's an easy and handy shortcut to remember because it saves you from having to click the Zoom tool to select it.

However, once engaged, the Zoom tool operates in only one direction, in or out depending on the option you have selected on the Tool Options bar. You can toggle the Zoom direction by holding the Alt key (Option on the Mac) as you zoom.



Zoom as you work
If you’re in the middle of painting, erasing or selecting an item and if you need to get access to the Zoom tool, press Ctrl + Space Bar (Command + Space Bar on the Mac) and you'll get access to the Zoom tool's current setting – which will be either Zoom In or Zoom Out depending on what you have selected. Use Ctrl + Alt + Space Bar (Command + Option + Space Bar on the Mac) to zoom the other way.



Zoom to a specific place
If your Zoom tool is set to Zoom In, you can zoom to a particular location in the image by dragging with the zoom tool over that location rather than simply clicking on it. If your tool is set to Zoom Out, press Alt (Option on the Mac), and drag over the place on the image that you want to focus on.



Size the window as you zoom
When the Zoom tool is selected, the Tool Options bar has a checkbox for Resize Window To Fit. Enable this and the window around the image will be resized to fit the zoomed image so you won't have any space between the image and the edge of the window. With this option disabled, if you shrink the image, the window stays the same size and grey area is added around the image between it and the window edge. If you zoom in with this option disabled the window stays the same size as you zoom.



Other zoom options
Some Zoom options can be selected from the View menu such as Zoom In, Zoom Out, Fit On Screen, Actual Pixels and Print Size. Each of these can also be selected using keyboard shortcuts such as Ctrl + + to zoom in, Ctrl + - to zoom out. Keystrokes appear in the menu opposite each item.



Zoom via the Status Bar
The current zoom percentage is shown in the left side of the image window's Status Bar. To zoom to a particular percentage level such as 150%, type 150 in the Status Bar box and press Enter.



Hidden Zoom Options
To quickly zoom an image to 100% size, double click the Zoom tool in the Tool Palette. The Hand tool can be used to size the image to fit the screen – to do this, double click the Hand tool. Exactly how big the image is when it is set to "fill the screen" depends on the position of toolbars and palettes.



Zoom with the mouse
To zoom with your mouse wheel, choose Edit > Preferences > General and enable the Zoom with scroll wheel checkbox. Then you can roll the mouse wheel to zoom in and out of the image.

Labels: , , ,

Wednesday, December 23, 2009

Photoshop - Making Steampunk gears

I’m very much into steampunk and creating steampunk gears and brushes. Here’s a simple way to create a gear using a Photoshop shape.
Step 1
Create a new document and add two guides using the rulers by selecting View > Rulers and then drag a horizontal and a vertical guide from the ruler lines into the middle of the image. These guides make it easier to line everything up. Add a new layer and select it so you aren't working on the background layer.Step 2
Select the polygon tool. Select the down-pointing arrow next to the shape options and set Smooth Corners, Star, Indent Sides by 65% , Smooth Indents and set the Sides value to 10. Make sure at the far right of the tool options bar you have Exclude Overlapping Path Areas selected.
Step 3
Hold the Shift key, click and drag over the intersection of the gridlines and drag outwards to create the star shape. Check the Paths palette to make sure that you have a white shape in the middle of the image. If not, stop and start over again. Step 4
Now with the Subtract From Path Area Option selected on the tool options bar, select the Ellipse shape tool, hold the mouse pointer over the intersection of the gridlines and start drawing. Add the Alt key (Option key on the Mac) to center the circle over the shape.

Drag the shape across the star shape so that it intersects each of the star points. Let go the mouse pointer, then let go the Alt and Shift keys.

Check the paths palette to ensure that you still have a sort of circular white shape in the middle of the image. If not, you will need to undo this last step and start over.
Step 5
Select black as the foreground color and in the bottom of the paths palette, select the Fill Path With Foreground Color option. You should now have a gear shape filled selection.
Step 6
Delete the Working Path by dragging and dropping it on the trashcan icon in the Paths palette.
Step 7
Return to the Layers palette and select the layer that you’re working on. Select the Elliptical Marquee Tool and holding the Shift key, click and drag from the intersection of the gridlines outwards. Before letting go of the mouse button, add the Alt or Option key so that the shape is centered inside the gear shape. Position and size the circle inside the gear as this will be the middle hole. When you have what you want, let go the mouse button and then release the Alt (Option) and Shift keys.Step 8
Press the Delete key to delete the contents of this layer. As you’re working on a separate layer, this will make a hole through the image to reveal the background layer underneath.

Select Ctrl (or Command) + D to remove the marquee and choose View > Clear Guides to remove the guides. Step 9
You now have a shape that you can make a brush from or add layer styles to make it look more like a gear.
